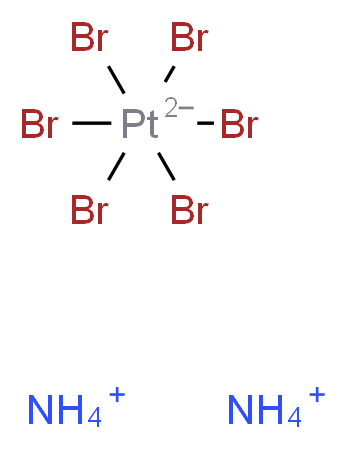

17363-02-9 molecular structure
click picture or here to close

diammonium hexabromoplatinumdiuide

ChemBase ID: 136938
Molecular Formular: Br6H8N2Pt
Molecular Mass: 710.57892
Monoisotopic Mass: 704.54356127
SMILES and InChIs

SMILES:
[NH4+].[NH4+].Br[Pt-2](Br)(Br)(Br)(Br)Br
Canonical SMILES:
Br[Pt-2](Br)(Br)(Br)(Br)Br.[NH4+].[NH4+]
InChI:
InChI=1S/6BrH.2H3N.Pt/h6*1H;2*1H3;/q;;;;;;;;+4/p-4
InChIKey:
YLDMEZNZYLWNNL-UHFFFAOYSA-J

Cite this record

CBID:136938 http://www.chembase.cn/molecule-136938.html

Collapse All Expand All

NAMES AND DATABASE IDS

NAMES AND DATABASE IDS

Names Database IDs
IUPAC name
diammonium hexabromoplatinumdiuide
IUPAC Traditional name
diammonium hexabromoplatinumdiuide
Synonyms
Ammonium hexabromoplatinate(IV)
六溴铂酸铵
CAS Number
17363-02-9
EC Number
241-394-6
MDL Number
MFCD00044261
PubChem SID
162231205
24864740
PubChem CID
16211461

DATA SOURCES

DATA SOURCES

All Sources Commercial Sources Non-commercial Sources
Data Source Data ID Price
Sigma Aldrich
398330 external link Add to cart Please log in.
Data Source Data ID
PubChem 16211461 external link

CALCULATED PROPERTIES

CALCULATED PROPERTIES

JChem
H Acceptors H Donor
LogD (pH = 5.5) 5.6406  LogD (pH = 7.4) 5.6406
Log P 5.6406  Molar Refractivity 52.4112 cm3
Polarizability 29.09882 Å3 Polar Surface Area 0.0 Å2
Rotatable Bonds Lipinski's Rule of Five false

PROPERTIES

PROPERTIES

Physical Property Safety Information Product Information Bioassay(PubChem)
Apperance
powder expand Show data source
Melting Point
145 °C (dec.)(lit.) expand Show data source
Density
4.265 g/mL at 25 °C(lit.) expand Show data source
European Hazard Symbols
Harmful Harmful (Xn) expand Show data source
MSDS Link
Download expand Show data source
German water hazard class
3 expand Show data source
Risk Statements
20/21/22-36/37/38 expand Show data source
Safety Statements
26-36 expand Show data source
GHS Pictograms
GHS07 expand Show data source
GHS Signal Word
Warning expand Show data source
GHS Hazard statements
H302 + H312 + H332-H315-H319-H335 expand Show data source
GHS Precautionary statements
P261-P280-P305 + P351 + P338 expand Show data source
Personal Protective Equipment
dust mask type N95 (US), Eyeshields, Gloves expand Show data source
Purity
99.9% trace metals basis expand Show data source
Linear Formula
(NH4)2PtBr6 expand Show data source
